UK
Ultralift Plus
A safe and efficient way to move ferrous loads

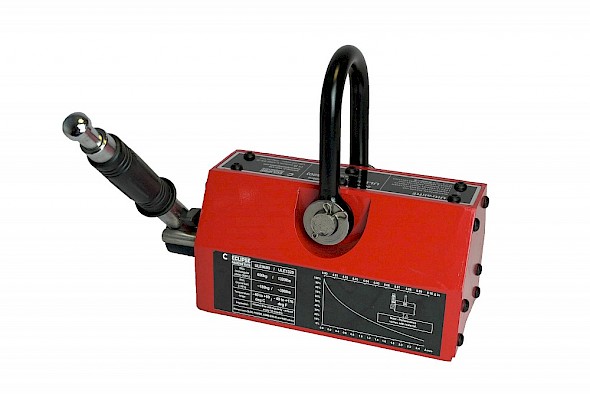

Ultralift E Magnetic Lifter
Our brand new high performance and cost-effective magnetic lifter
- Superior lifting performance and cost-effective
- Simple, safe, single person operation
- Lifts up to 2,000kg (flat plate) or 900kg (round bar)
- Increased lifts per hour – engages with the load instantly
- Optimises storage space - requires only single face access to the load
- Does not damage the load
- The load can be moved with pinpoint accuracy
- Zero running costs – uses permanent magnetic technology
Overview - Ultralift E Magnetic Lifter
The Cost-Effective Choice For High Performance Lifting
Our brand new Ultralift E Magnetic Lifter range utilises the latest in magnetic technology to provide a cost-effective lifting solution. The technology is fail-safe, extremely easy to operate, with no electricity required delivering world class results when handling ferrous loads compared to traditional methods such as slings, chains, hooks and grabs.
With a guaranteed Working Load Limit (WLL) of 3:1, you can rest assured that the Ultralift E provides a safe and efficient way to lift ferrous loads in your factory, workshop or warehouse.
High Performance Lifting Magnet For Ferrous Loads
Our Ultralift E Magnetic Lifter range is ideal for applications ranging from light pick and place equipment to heavy steel stock movement. This high performance magnetic lifter has been designed with safety uppermost in mind, in addition to utilising permanent magnetic technology to ensure the load cannot be released during lifting. A secondary handle locking device provides further re-assurance that the load cannot be accidentally released when in use.
Download The Ultralift E User Manual
Click here to download the full Ultralift E user manual
* Please note that the Working Load Limit (WLL) is now used instead of Safe Working Load (SWL). The Lifting force values shown include the 3:1 safety factor and have been based on using thick high magnetic permeability steel with no air gaps. Air gaps, thinner materials and materials with lower magnetic permeability can all reduce the pull force a lifter can actually achieve. Please note that the achievable pull force is reduced when lifting thinner mild steel plate. Please note that the diameter of the round bar can affect the amount of lift that can be achieved. You must follow LOLER, PUWER, ASME B30.20 and H&S advice. You should always check for a downrate, factor in any downrate to then perform a safety lift, then perform a full lift only after a successful safety lift.
Technical Data
Model Variations
| Product Number | Self Weight (kg) | Material Length Max. (mm) | Flat Section WLL (kg) | Flat Section Thickness Min (mm) | Round Section Dia. Max (mm) | Round Section WLL (kg) |
|---|---|---|---|---|---|---|
| ULE0100 | 3 | 1000 | 100 | 15 | 80 | 50 |
| ULE0300 | 10 | 1500 | 300 | 20 | 100 | 150 |
| ULE0600 | 23 | 2000 | 600 | 30 | 140 | 300 |
| ULE1000 | 39 | 2500 | 1000 | 40 | 180 | 500 |
| ULE2000 | 74 | 3000 | 2000 | 50 | 300 | 900 |
