Supermill Magnetic Chuck

Overview - Supermill Magnetic Chuck

Fast, fail-safe clamping

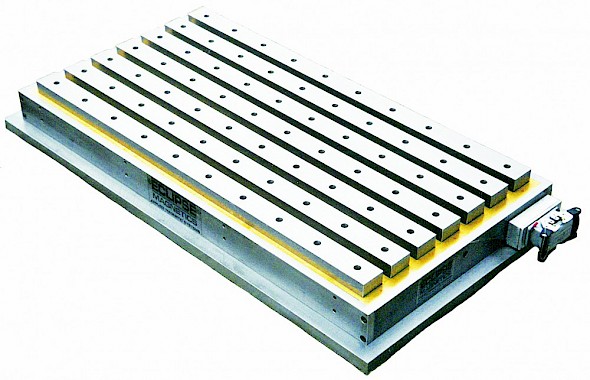

The ultimate permanent electro-magnetic chuck for heavy duty milling applications. Supermill is constructed from solid steel and brass; it incorporates high intensity neodymium magnets to ensure an extremely robust, high performance clamping system. It is ideal for steel plate from 15mm to 300mm thick. Supermill outperforms traditional clamping systems and other milling chucks, offering several process advantages.

Supermill cuts cycle times by 70% . This actual example shows how Supermill can make an enormous difference to production efficiency.

Example: A batch of 50 plate steel components, each one measuring 2.06m x 1.045m x 16mm thick with a machining path length of 6.21m are machined on a 40 H.P. milling machine with a 5.5m long bed. A carbide cutter is used to mill a 45 degree profile at a feed rate of 610mm/minute.

Using traditional mechanical clamps (12 required).

• Time taken to load each component, clamp, remove the workpiece and clean the bed (20 minutes)
• Obstructed cutting path, time taken to remove and re-position the workpiece to gain access to all faces (36 minutes)
• Time spent cutting the component (10.2 minutes)

Total cycle time per component (66.2 minutes) Using Supermill

• Time taken to load each component, position, clamp and clean (10 minutes)
• No time taken to re-position as access is available for machining 5 sides (0 minutes)
• Time spent cutting the component (10.2 minutes)

Total cycle time (20.2 minutes)
