Circular Premier Chuck
Premier range grinding chucks provide precision performance
- For fast, accurate, secure holding of ferrous components
- Thick all metal top plate - high accuracy and long lifespan
- High corrosion resistance - resists damage from coolants
- Concentric guide rings - provide positional guide

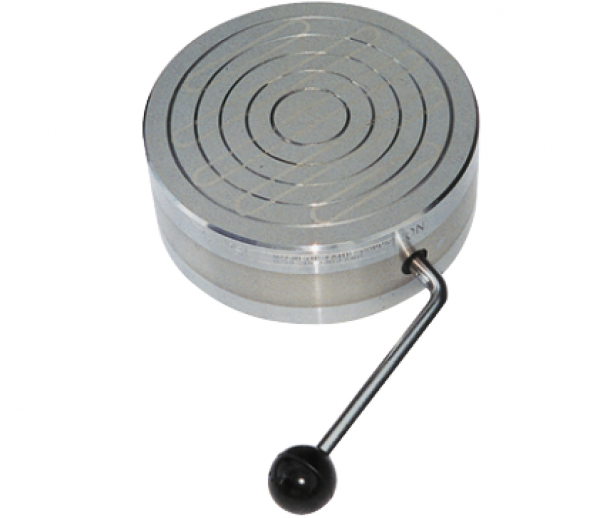

Overview - Circular Premier Chuck
Premium permanent magnetic chucks, ideal for precision grinding, turning and inspection.
Our high performance Premier circular chucks include the high quality parallel pole version.
Ideal for holding workpieces on lathes and cylindrical or rotary grinding machines, this range is designed for holding thin ring-shaped components that can be subject to radial distortion.
Grooved rings in the top plate assist in visual positioning to aod quick changeover
- Simple on-off switching - removable operating handle
- Variable hold - allows adjustment of position before full hold is engaged
- Failsafe permanent magnetic technology

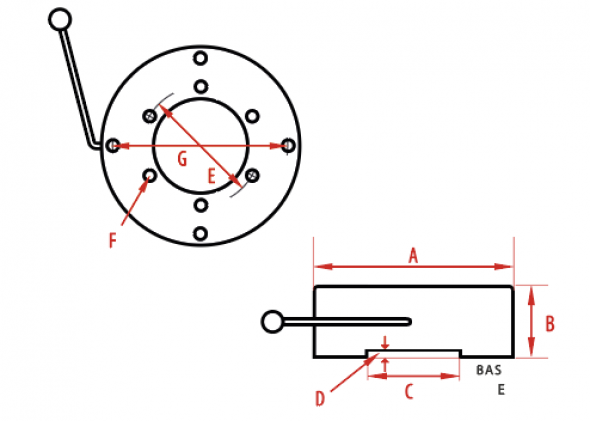

Model Variations
| Product Number | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| AX475C/P | 121 | 45 | 50.8 | 6.5 | 76.2 | M6 | 101.6 | 4.23 |
| AX651C/P | 167 | 60 | 76.22 | 6.5 | 101.6 | M10 | 139.7 | 9.66 |
| AX91C/P | 229 | 60 | 85.8 | 6.5 | 114.3 | M10 | 190.5 | 20 |
| AX12C/P | 305 | 72 | 152.4 | 4.75 | 184.15 | M12 | 254 | 45.5 |
