Optimag E - Electronically Activated Handling System
Fast, easy lifting, handling and placing of ferrous loads
Optimag P Magnetic Handling System
Ideal for lifting or handling rigid, thin, perforated or sheet steel
- Failsafe operation - lose air the load is still retained
- Energy efficient - air only required for on/off switching NOT required during lift
- Can hold through large air gaps such as packaging
- Modular system - one or multiple units can be used
- No damage to part being handled
- Excellent weight to performance ratio
- Easy installation, low maintenance
Overview - Optimag P Magnetic Handling System
Pneumatically switchable permanent magnet (PSPM)

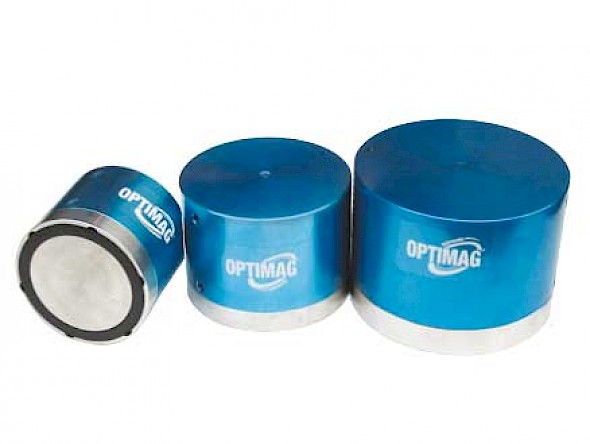

Optimag P is ideal for clamping or lifting thin or perforated ferrous pressings and sheet material from 2mm thick. It is suitable for loads with rough, uneven or painted surfaces.
Available in circular configurations, Optimag P is typically used in robotics, pick and place, transfer machinery or manipulator applications. Lift in Safety, the Optimag P magnetic lifter incorporates permanent magnetic technology. A short pulse of compressed air is only required to switch it on or off. Once energised or de-energised it will not change until it receives another pulse of air. If the power source fails the load will still be held securely.
* Please note that the Working Load Limit (WLL) is now used instead of Safe Working Load (SWL). The Lifting force values shown include the 3:1 safety factor and have been based on using thick high magnetic permeability steel with no air gaps. Air gaps, thinner materials and materials with lower magnetic permeability can all reduce the pull force a lifter can actually achieve. Please note that the achievable pull force is reduced when lifting thinner mild steel plate. Please note that the diameter of the round bar can affect the amount of lift that can be achieved. You must follow LOLER, PUWER, ASME B30.20 and H&S advice. You should always check for a downrate, factor in any downrate to then perform a safety lift, then perform a full lift only after a successful safety lift.
Technical Data
Model Variations

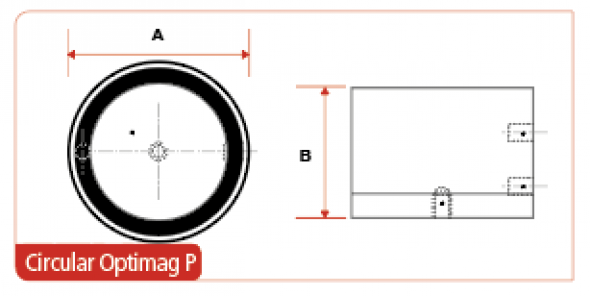

| Product Number | Load profile | WLL (kg) | Diameter A (mm) | Height B (mm) | Width C (mm) | Length D (mm) | Unit Weight (kg) |
|---|---|---|---|---|---|---|---|
| PSPM80C | Flat | 8.5 | 80 | 78.5 | N/A | N/A | 1.0 |
| PSPM100C | Flat | 18.8 | 100 | 82.5 | N/A | N/A | 1.50 |
| PSPM125C | Flat | 29 | 125 | 93 | N/A | N/A | 3.0 |
| PSPM150C | Flat | 59 | 150 | 109 | N/A | N/A | 4.80 |
