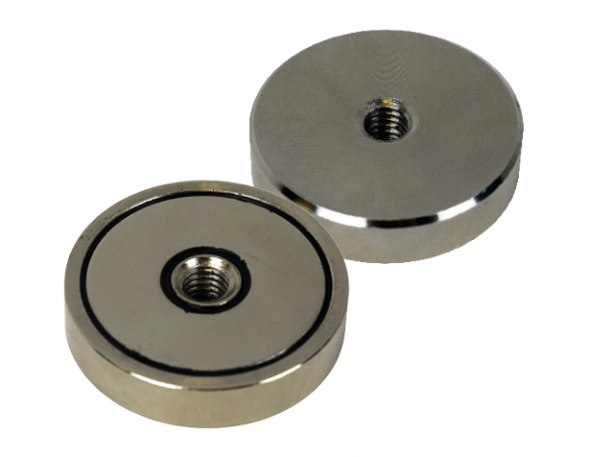

Neodymium NdFeB Shallow Pot Magnet with Internal Thread

Ideal for clamping or holding applications

  • Can accommodate male threaded components
  • High strength magnetic clamping up to 39Kg pull force
  • Zinc plated body for extra protection
  • Ideal for use in sunken surfaces or recesses
  • Diameters available up to 40mm

Overview - Neodymium NdFeB Shallow Pot Magnet with Internal Thread

Discover more about Pot Magnets

Model Variations

Product NumberDiameter (mm)Thickness (mm)Thread (mm)Weight (g)Pull Force (kg)Units per Pack
E1018/NEO104.5M32.51.020
E1019/NEO134.5M34.32.520
E1020/NEO164.5M46.35.020
E1021/NEO206M4117.010
E1022/NEO257M52113.510
E1023/NEO327M63625.010
E1024/NEO408M66839.05
