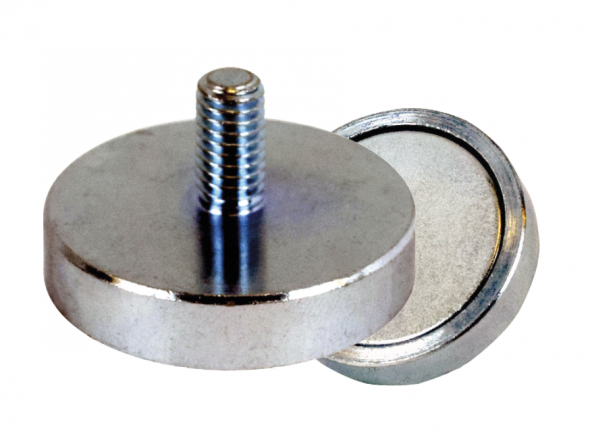

Neodymium NdFeB Shallow Pot Magnet with an External Thread

Ideal for attaching female threaded components

  • Zinc plated body with threaded stem
  • Pull forces up to 41Kg
  • Sizes range from 10mm to 40mm diameter
  • Thread sizes from M3 to M8

Model Variations

Product NumberDiameter (mm)Thickness* (mm)Overall Height(mm)Thread (mm)Weight (g)Pull Force (kg)Units per Pack
E1050/NEO104.511.5M33.42.520
E1051/NEO134.511.5M33.96.020
E1052/NEO164.513.5M47.19.520
E1053/NEO20613.5M414.914.010
E1054/NEO25716.5M526.92010
E1055/NEO32718.5M643.9355
E1056/NEO40820M880.1415
