Neodymium NdFeB Deep Pot Bi-Pole Magnets-Threaded Hole

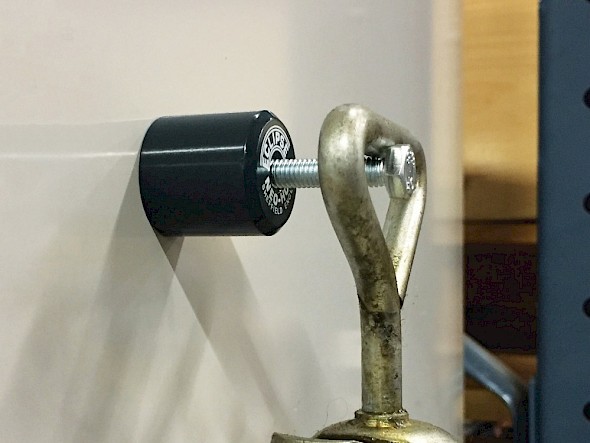

Strong pot magnet with threaded hole for attaching components
- Aluminium pot with mild steel pole pieces
- N35 grade nickel plated magnet material
- 80°C max operating temperature
- Ideal for clamping applications
Overview - Neodymium NdFeB Deep Pot Bi-Pole Magnets-Threaded Hole

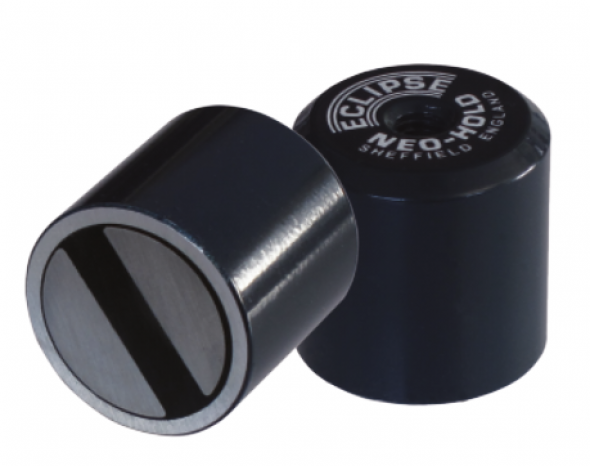

Neodymium NdFeB Bi-Pole Deep Pot Magnet / Twin Pole Blind Ended Deep Pot Magnet
The bi-pole deep pot magnet and twin pole blind ended deep pot magnet are variants of a similar design theme. The outer casing is aluminium or brass (i.e. non-magnetic). There are two mild steel pole pieces (circular segment shaped) with a magnet between the mild steel poles. Bi-pole and twin pole are interchangeable names for this style of pot magnet.
The deep pot versions of the bi-pole or twin pole pot magnets either have a threaded hole at the back or they are blind-ended (no threaded hole or any other form of fixing). Press fitment is usually performed on the blind ended versions). The Neodymium (rare earth) or NdFeB bi-pole deep pot magnet and NdFeB twin pole blind ended deep pot magnet versions are rated to a maximum operating temperature of +80 degrees C. I
Model Variations
| Product Number | Diameter (mm) | Height (mm) | Thread size (mm) | Weight (g) | Pull force (kg) | Units per pack |
|---|---|---|---|---|---|---|
| NH025 | 12.7 | 12 | M5 | 10 | 2.5 | 10 |
| NH065 | 16 | 16 | M6 | 18 | 8 | 10 |
| NH130 | 22.2 | 20 | M6 | 40 | 16 | 5 |
| NH240 | 25.4 | 25 | M6 | 70 | 25 | 5 |
