Neodymium NdFeB Deep Pot Bi-Pole Magnets-Threaded Hole
Strong pot magnet with threaded hole for attaching components
Hover to zoom
Neodymium NdFeB Deep Pot Bi-Pole Magnets
Ideal for positioning, holding and clamping applications
- Brass pot with mild steel pole pieces
- N35 grade nickel plated magnet material
- 80°C max operating temperature
- Ideal for clamping applications
Overview - Neodymium NdFeB Deep Pot Bi-Pole Magnets
Neodymium Bi-Pole Deep Pot Magnet / Twin Pole Blind Ended Deep Pot Magnet

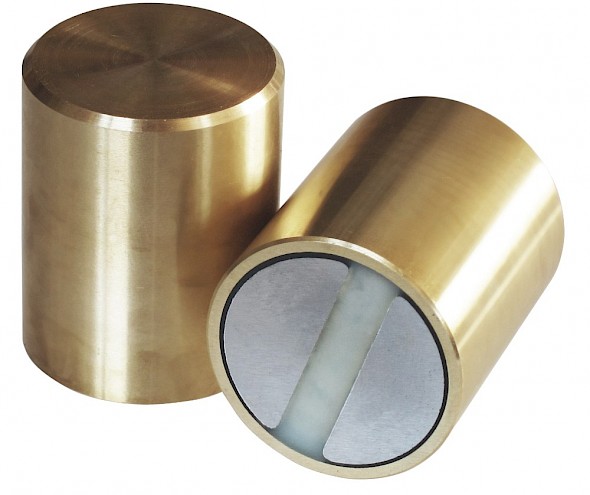

The bi-pole deep pot magnet and twin pole blind ended deep pot magnet are variants of a similar design theme. The outer casing is aluminium or brass (i.e. non-magnetic). There are two mild steel pole pieces (circular segment shaped) with a magnet between the mild steel poles.
Bi-pole and twin pole are interchangeable names for this style of pot magnet. The deep pot versions of the bi-pole or twin pole pot magnets either have a threaded hole at the back or they are blind-ended (no threaded hole or any other form of fixing).
Press fitment is usually performed on the blind ended versions). The Neodymium (rare earth) or NdFeB bi-pole deep pot magnet and NdFeB twin pole blind ended deep pot magnet versions are rated to a maximum operating temperature of +80 degrees C.
Model Variations
| Product Number | Diameter (mm) | Height (mm) | Weight (g) | Pull force (kg) | Units per pack |
|---|---|---|---|---|---|
| E750NEO | 6 | 20 | 4 | 1 | 20 |
| E751NEO | 8 | 20 | 7 | 2.5 | 20 |
| E752NEO | 10 | 20 | 11 | 4.5 | 20 |
| E753NEO | 13 | 20 | 19 | 7 | 20 |
| E754NEO | 16 | 20 | 29 | 15 | 10 |
| E755NEO | 20 | 25 | 57 | 28 | 5 |
| E756NEO | 25 | 35 | 128 | 45 | 2 |
| E757NEO | 32 | 40 | 228 | 70 | 2 |
