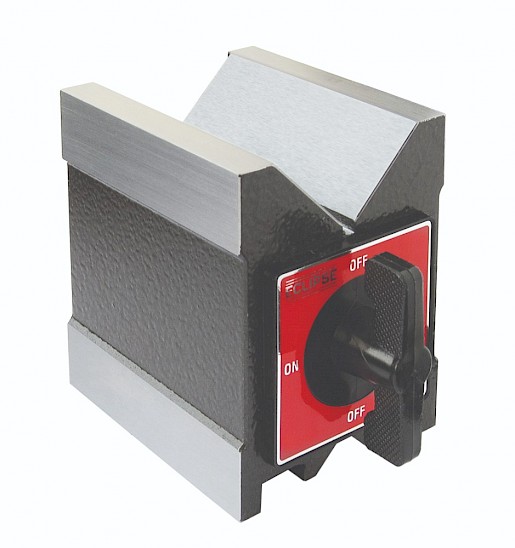

Magnetic V Blocks

Securely hold workpieces for grinding, marking or spark erosion

Easy to engage and release the workpiece
Instant, accurate clamping
Can be used on its base, side or end

Overview - Magnetic V Blocks

Ideal for holding cylindrical and other complex workpieces for marking, spark erosion, grinding and measurement. The 'v' and the base are both magnetic. Both are energised / de-energised at the same time by the toggle switch. Securing the base to any flat ferrous surface and securing the workpiece to the holding area.

See our range of Workholding Systems

Want to discuss this in more detail? Get in touch

Model Variations

Product Number	Width (mm)	Length (mm)	Height (mm)	Max dia. of workpiece top 'v' (mm)	Max dia. of workpiece bottom 'v' (mm)	Weight (kg)
25 Micron Accuracy
E934	70	101.6	95	65	22	1.98
E934MP	70	101.6	95	65	22	3.96
E935	70	80	95	65	22	3.12
E935MP	70	80	95	65	22	6.24
10 Micron Accuracy
E933A	70	120	95	65	22	4.4
E933MPA	70	120	95	65	22	8.8
E935A	70	80	95	65	22	2.95
E935MPA	70	80	95	65	22	5.9
