Magnetic Bases Push Button | Eclipse Magnetics

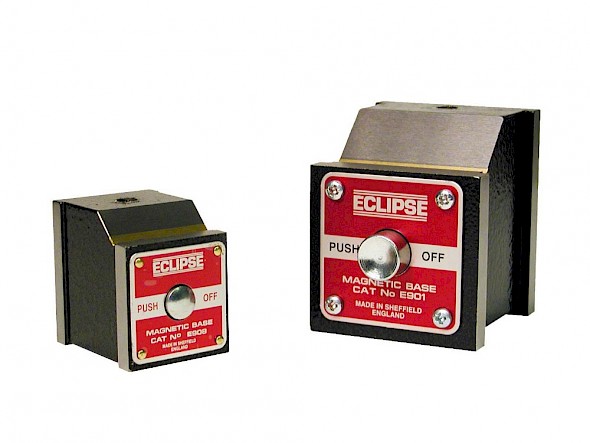

Magnetic Bases Push Button

Push button activated magnetic base for mounting components

  • Push button switched magnetic bases to hold Eclipse Magnetics fitments for inspecting workpieces.
  • Can be located on any ferrous surface to provide rigid support
  • Magnetic on 4 sides
  • Can clamp onto curved and flat surfaces
  • A range of fitments also available
  • Part numbers E900WF and E901WF

Model Variations

Product NumberLength (mm)Width (mm)Height (mm)Screw Thread (mm)Weight (kg)Hold (kg)
E900WF484052M80.530
E901WF646476M81.780
