90° Magnetic Welding Clamp Switchable
Easy, quick set up ideal for welding and assembly
Inside and Outside Welding Clamps
Ideal for clamping, holding and positioning steel in welding or assembly
- Ideal for use with sheet metal, round pipe, square , angled or flat stock

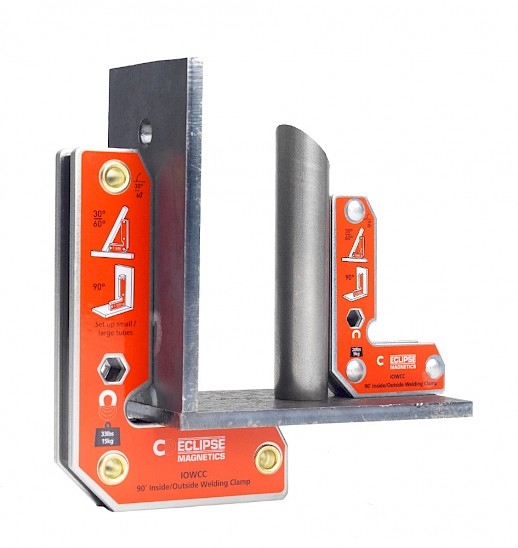

- Two sided independent magnetic fields can clamp inside and outside

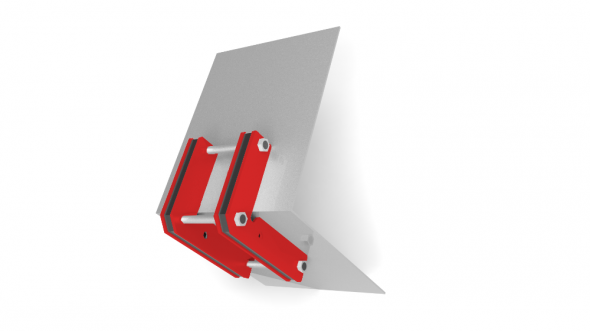

- Comes with mounting holes for linking two units together
- Hex hole allows breakaway leverage
Overview - Inside and Outside Welding Clamps
Inside and Outside Welding Clamps

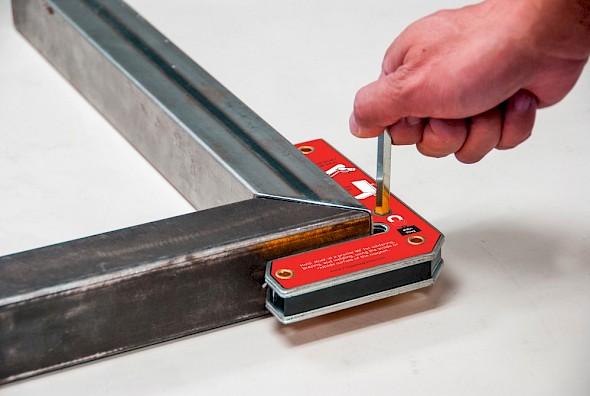

Ideal for tack welding applications the Inside and Outside welding clamp provide a simple alternative to screw fit corner clamps and angle clamps for position 2 pieces of steel pre-welding. Available in 3 different sizes they are ideal for clamping at 30º, 60º and 90º angles.

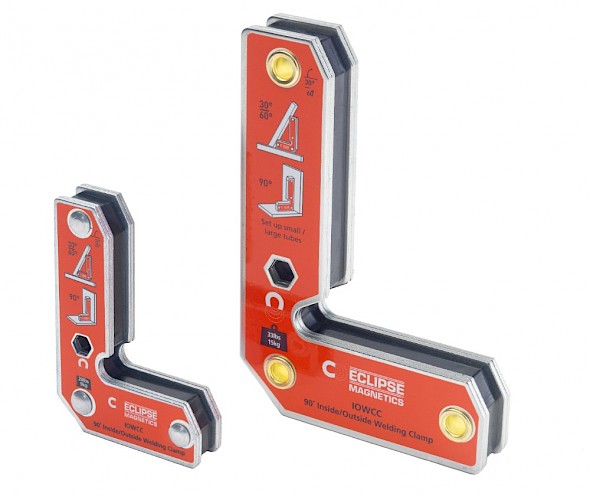

Model Variations
| Product Number | Angles | Height (mm) | Width (mm) | Thickness (mm) | Weight (kg) | Pull Force (kg) |
|---|---|---|---|---|---|---|
| IOWCC | 30 ̊, 60 ̊, 90 ̊30 ̊, 60 ̊, 90 ̊ | 75.5 | 52 | 14 | 0.13 | 9 |
| IOWCC* | 30 ̊, 60 ̊, 90 ̊ | 125 | 85 | 18 | 0.415 | 15 |
| IOWCL | 30 ̊, 60 ̊, 90 ̊ | 165 | 110 | 20 | 0.8 | 18 |
