Magnetic Bases Push Button
Push button activated magnetic base for mounting components

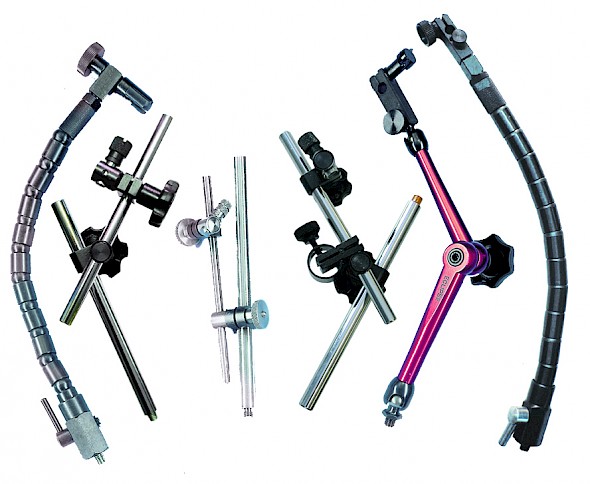

Fitment arm sets for magnetic bases
Ideal for mounting measuring equipment
- Rigid, flexible and heavy duty options available
- Bases are easy to attach and secure
- Available with fine adjustment crossbar for precise measurement
- Fitments complete with screw thread for attaching to a magnetic base or direct to machine
- Also available supplied with a magnetic base
Overview - Fitment arm sets for magnetic bases
Our mounting arms or gauging arms are suitable for use with magnetic bases. Available in compact, flexible, single pillar or heavy duty options each can be used for a variety of mounting applications such as dial or digital indicators, lighting or optical instruments. Available with M6, M8 or M10 threads they provide firm support with fine positional adjustment. Read more about our magnetic stand sets
Model Variations
| Product Number | Crossbar dia. | Crossbar length | Pillar dia. | Pillar height | Screw fixing | Cross dia. (in) | Crossbar length (in) | Pillar dia. (in) | Pillar height (in) |
|---|---|---|---|---|---|---|---|---|---|
| RP72CP | 6.3 | 150 | 12.5 | 185 | M8 | 0.25 | 5.9 | 0.492 | 7.28 |
| RP991BL | 10 | 165 | 12 | 175 | M8 | 0.394 | 6.5 | 0.472 | 6.89 |
| RP995BL | 10 | 165 | 12 | 175 | M8 | 4 | 6.6 | 4.4 | 7 |

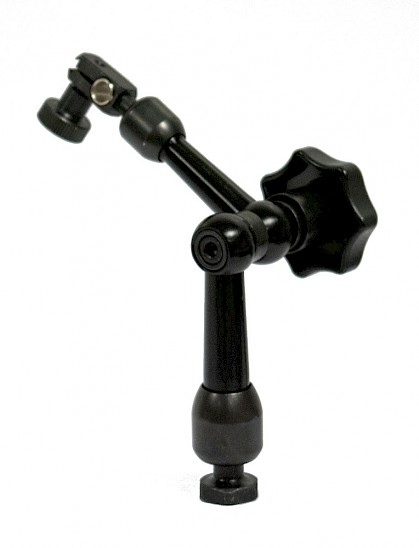

| RP999S | M6 | ||||||||

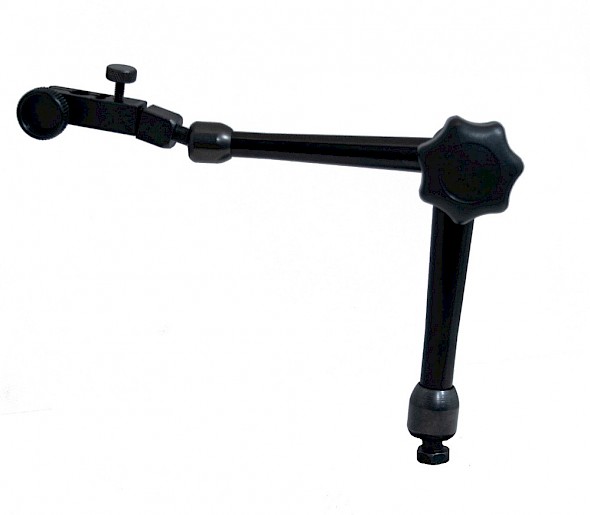

| RP999 | M8 | ||||||||

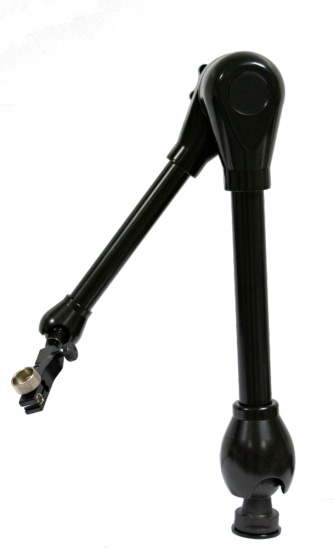

| RP999L | M10 | ||||||||
| RP901/1 | 14 | 200 | 20 | 300 | M8 | 0.55 | 7.87 | 0.79 | 11.81 |

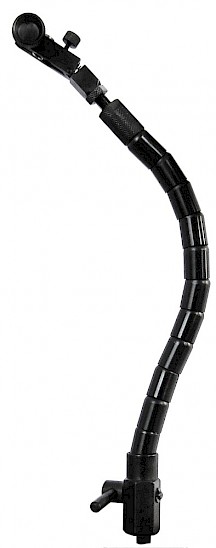

| RP907S | M8 | ||||||||
| RP909FIT | N/A | N/A | 6 | 120 | M6 | n/a | n/a | 0.24 | 4.72 |
