Magnetic Bases Push Button
Push button activated magnetic base for mounting components
Magnetic Stands including Magnetic Base & Mounting Arm
Quick and easy attachment, ideal for mounting components
- For use in mounting dial test indicators in measurement , inspection and positioning applications
- Simple, secure positioning - measurement made easy
- Highly durable, quality manufacture
- Clamp onto curved and flat surfaces
- Wide range of heavy duty, light duty or flexible fitments and magnetic bases
- Bases and fitments also available separately
Overview - Magnetic Stands including Magnetic Base & Mounting Arm
Magnetic Bases and Fitment Arm Sets
Our magnetic stands consist of a high performance magnetic base and a fitment arm . Available in a variety of magnetic base and arm combinations they include toggle or push button switching mechanisms to allow easy and secure mounting and release. Available with M6, M8 and M10 thread options, the arms and bases are interchangeable.
They are widely used for precision measurement, their rigid, secure positioning coupled with fine adjustment means they can make a significant contribution to ensuring a accurate surface finish measurement. They are commonly used for mounting Dial Test Indicators and Digital Indicators, or supporting gauges. The magnetic bases and fitment arms kits are also used for mounting medical instruments, photographic equipment, temporary lighting ,sound equipment as well as jigs and general fixings.
Magnetic bases and fitment arms are available as separate items if the full set is not required.
Model Variations
| Product Number | Base part no. | Fitment part no. | Fitment type | Hold (kg) | Switching type | Hold (lb) |
|---|---|---|---|---|---|---|
| E901 | E901WF | RP991BL | Heavy Duty with Fine Adjustment | 80 | Push Button | 176.37 |

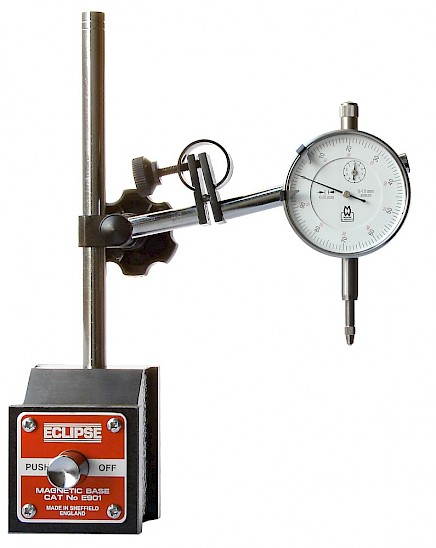

| E901/1 | E901WF | RP901/1 | Extra Large Heavy Duty | 80 | Push Button | 176.37 |

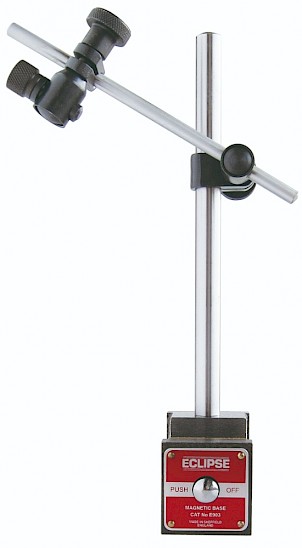

| E903CP | E900WF | RP72CP | Light Duty | 30 | Push Button | 66.13 |

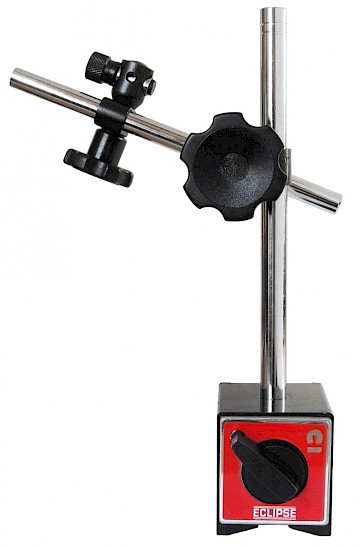

| E905 | E905WF | RP995BL | Heavy Duty | 80 | Lever | 176.37 |
| E906 | E905WF | RP991BL | Heavy Duty with Fine Adjustment | 80 | Lever | 176.37 |

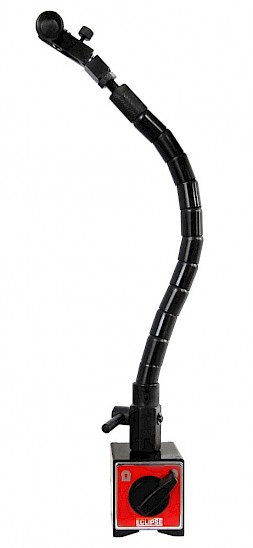

| E907M | E905WF | RP907S | Flexible Snake Arm F/A | 80 | Lever | 176.37 |
| E910 | E905WF | RP999 | Mechanical One Piece | 80 | Lever | 176.37 |

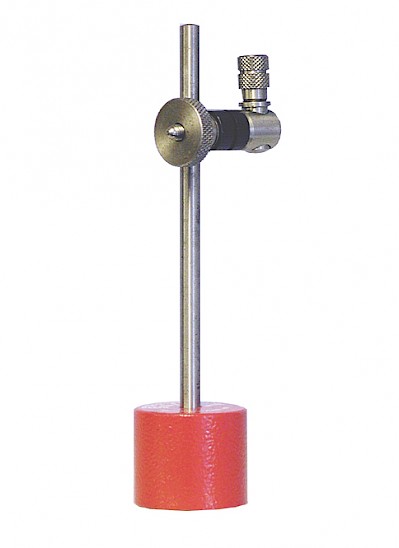

| E909 | 834 | RP909FIT | One Pillar | 14 | Non-Switchable | 30.86 |
| E908M | E900WF | RP995BL | Heavy Duty | 30 | Push Button | 66.13 |
| E910S | E905WF/50 | RP999S | Small | 50 | Toggle | 110 |
| E910 | E905WF | RP999 | Large | 80 | Toggle | 176 |
| E910L | E905WF/130 | RP999L | Extra large/Heavy Duty | 130 | Toggle | 286 |
