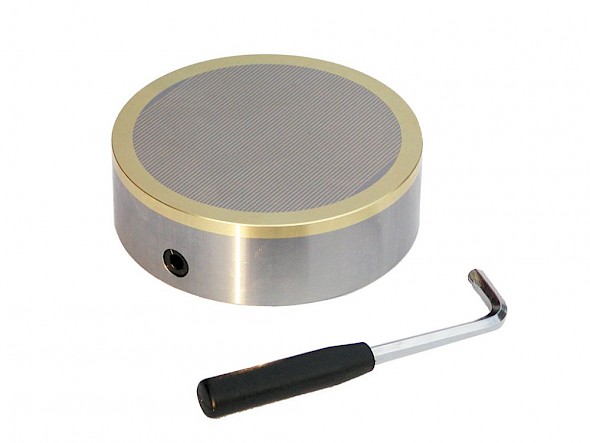

Circular Standard Magnetic Chuck
Fast, accurate clamping for grinding and machining components
- All metal top plate - high accuracy and long lifespan
- High corrosion resistance - resists damage from coolants
- Chrome plated side and end stops - accurate location
- Base plate - for fixing to a machine bed (clamps supplied)
- Simple on-off switching - removable operating handle
- Failsafe permanent magnetic technology
- For milling applications see <a href="{{store direct_url="product-range/workholding/sm2618-supermill.html"}}">Supermill</a>.
- </div>
Overview - Circular Standard Magnetic Chuck
Precision in grinding and turning
Cost-effective permanent magnetic chucks for grinding and turning applications. Our Standard range chucks provide high performance at an extremely competitive price. Available in a choice of 2 pole formats, the standard chucks are manufactured from steel and brass with neodymium magnets located in the top plate to enhance performance.
Pole spacing options Fine pole - ideal for thin and small workpieces from 3mm to 0.7mm thick Standard pole - ideal for clamping thicker workpieces >3mm
For milling applications see Supermill
Model Variations
| Product Number | E | F | G | Pole | A (in) | A (mm) | B (in) | B (mm) | C (in) | C (mm) | D (in) | D (mm) | E (in) | E (mm) | F (in) | F (mm) | G (in) | G (mm) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ECSP100 | 76.2 | M6 | N/A | STD Pole | 3.94 | 100 | 1.96 | 50 | 2 | 50.8 | 0.25 | 6.35 | 3 | 76.2 | M6 | M6 | n/a | N/A | 13.2 |
| ECSP125 | 76.2 | M6 | 101.6 | STD Pole | 4.92 | 125 | 1.96 | 50 | 2 | 50.8 | 0.25 | 6.35 | 3 | 76.2 | M6 | M6 | 4 | 101.6 | 20.7 |
| ECSP195 | 101.6 | M10 | 139.7 | STD Pole | 7.68 | 195 | 1.96 | 50 | 3 | 76.2 | 0.25 | 6.35 | 4 | 101.6 | M10 | M10 | 5.5 | 139.7 | 39.7 |
| ECSP160 | 101.6 | M10 | 139.7 | STD Pole | 6.3 | 160 | 1.96 | 50 | 3 | 76.2 | 0.25 | 6.35 | 4 | 101.6 | M10 | M10 | 5.5 | 139.7 | 29.8 |
| ECSP255 | 114.3 | M10 | 190.5 | STD Pole | 10 | 255 | 1.96 | 50 | 3.37 | 85.73 | 0.25 | 6.35 | 4.5 | 114.3 | M10 | M10 | 7.5 | 190.5 | 49.6 |
| ECSP310 | 184.15 | M12 | 254 | STD Pole | 12.2 | 310 | 1.96 | 50 | 6 | 152.4 | 0.25 | 6.35 | 7.25 | 184.15 | M12 | M12 | 10 | 254 | 70.5 |
| ECFP100 | 76.2 | M6 | N/A | Fine Pole | 3.94 | 100 | 1.96 | 50 | 2 | 50.8 | 0.25 | 6.35 | 3 | 76.2 | M6 | M6 | n/a | N/A | 13.2 |
| ECSP350 | 196.85 | M12 | N/A | Fine Pole | 13.77 | 350 | 1.96 | 50 | 7.75 | 196.85 | 0.25 | 6.35 | 9.25 | 196.85 | M12 | M12 | n/a | N/A | 88.2 |
| ECFP125 | 76.2 | M6 | 101.6 | Fine Pole | 4.92 | 125 | 1.96 | 50 | 2 | 50.8 | 0.25 | 6.35 | 3 | 76.2 | M6 | M6 | 4 | 101.6 | 20.7 |
| ECFP160 | 101.6 | M10 | 139.7 | Fine Pole | 6.3 | 160 | 1.96 | 50 | 3 | 76.2 | 0.25 | 6.35 | 4 | 101.6 | M10 | M10 | 5.5 | 139.7 | 29.8 |
| ECFP255 | 114.3 | M10 | 190.5 | Fine Pole | 10 | 255 | 1.96 | 50 | 3.37 | 85.73 | 0.25 | 6.35 | 4.5 | 114.3 | M10 | M10 | 7.5 | 190.5 | 49.6 |
| ECFP310 | 184.15 | M12 | 254 | Fine Pole | 12.2 | 310 | 1.96 | 50 | 6 | 152.4 | 0.25 | 6.35 | 7.25 | 184.15 | M12 | M12 | 10 | 254 | 70.5 |
| ECFP195 | 101.6 | M10 | 139.7 | Fine Pole | 7.68 | 195 | 1.96 | 50 | 3 | 76.2 | 0.25 | 6.35 | 4 | 101.6 | M10 | M10 | 5.5 | 139.7 | 39.7 |
| ECFP350 | Fine Pole | 13.77 | 1.96 | 7.75 | 0.25 | 9.25 | M12 | n/a | 88.2 |
