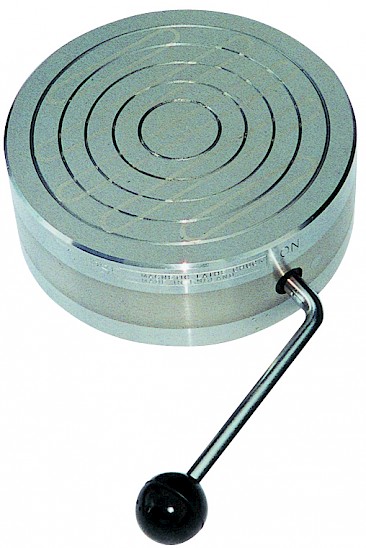

Circular Premier Magnetic Chuck
Premier range grinding chucks provide precision performance
- For fast, accurate, secure holding of ferrous components
- Thick all metal top plate - high accuracy and long lifespan
- High corrosion resistance - resists damage from coolants
- Concentric guide rings - provide positional guide
- Simple on-off switching - removable operating handle
- Variable hold - allows adjustment of position before full hold is engaged
- Failsafe permanent magnetic technology
Overview - Circular Premier Magnetic Chuck
Premium permanent magnetic chucks, ideal for precision grinding, turning and inspection. Our high performance Premier circular chucks include the high quality parallel pole version. Ideal for holding workpieces on lathes and cylindrical or rotary grinding machines, this range is designed for holding thin ring-shaped components that can be subject to radial distortion.
For milling applications see Supermill.
Model Variations
| Product Number | E | F | G | A (in) | A (mm) | B (in) | B (mm) | C (in) | C (mm) | D (in) | D (mm) | E (in) | E (mm) | F (in) | F (mm) | G (in) | G (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AX12C/P | 184 | M12 | 254 | 4.75 | 305 | 1.77 | 76 | 2 | 152 | 0.236 | 5 | 3 | 184 | M6 | M12 | 4.02 | 254 |
| AX475C/P | 76.2 | M6 | 101.6 | 4.75 | 121 | 1.77 | 45 | 2 | 51 | 0.26 | 6.5 | 3 | 76 | M6 | M6 | 4.02 | 102 |
| AX91C/P | 114.3 | M10 | 190.5 | 9 | 229 | 2 | 60 | 3.39 | 86 | 0.26 | 6.5 | 4.5 | 114 | M10 | M10 | 7.52 | 191 |
| AX651C/P | 101.6 | M10 | 139.7 | 6.5 | 167 | 2.36 | 60 | 3 | 76 | 0.26 | 6.5 | 4 | 102 | M10 | M10 | 5.51 | 140 |
