Housed Easy Clean Grid Magnetic Separator
Easy clean, high intensity magnetic grid separator
Magnetic Grids for Sieves
Drop in replacements for standard vibratory sieves
- Position beneath the sieve screen for extra protection
- High-intensity magnetic field extracts fine ferrous particles
- Available with metal detectable silicon rubber seal
- ATEX approved versions available
- Protective case available
Overview - Magnetic Grids for Sieves
Added protection for vibratory sieves

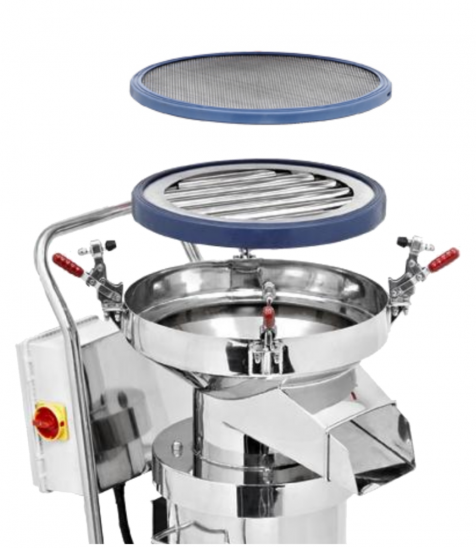

Direct drop-in fit to Russell Finex Compact & Farley Greene Sievmaster Models.

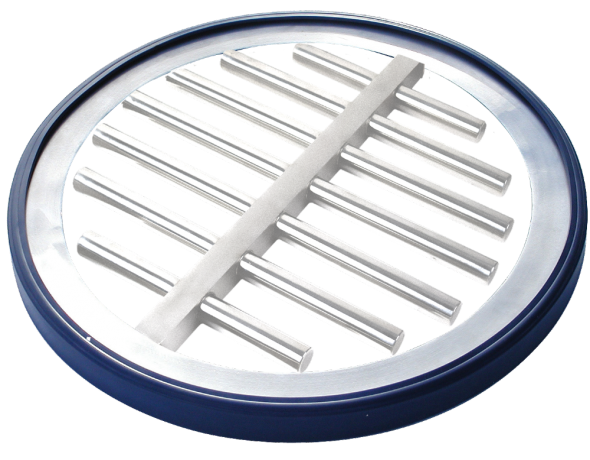

Available with metal detectable seal is made by the patented rubber material which is unique to Eclipse Magnetics. This allows for easy detection in case of breakage due to excessive sieve wear.

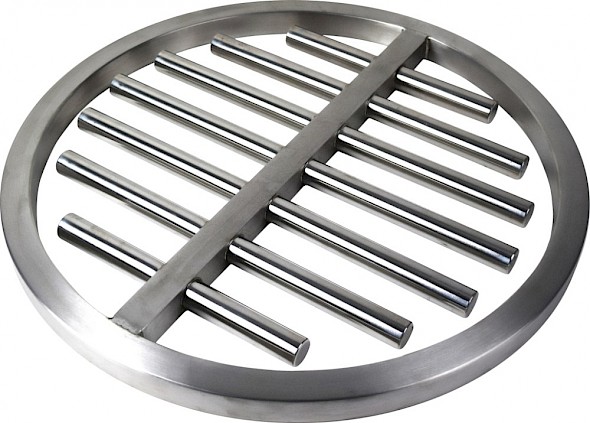

Seal, screen and screen seals are available separately to fit in your current sieve. Full stainless steel construction makes it ideal for use in applications which have demanding hygiene standards.

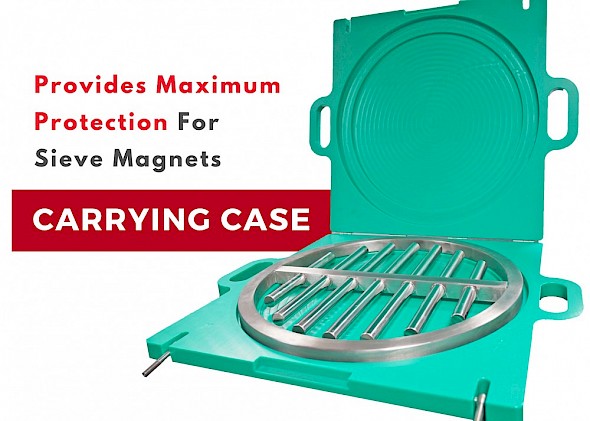

For maximum safety during handling special protective cases are also available to prevent damage to the magnet or operator injury such as trapped fingers if the magnet attracts rogue metal items during transit.
Installation location:
Post-sieve screen for dry powders including flour and granulates .
Benefits
• Easy to clean
• Reduces 'spark' risk
• Meet audit requirements
• Removes fine particle ferrous contaminants
• Protect against screen wear and failure
• Feature strong rare earth magnets either 7,000 gauss or Super-High strength 11,000 gauss.
• Static dissipative all metal construction
For gravity feed separation see Easy Clean Housed Grids
Technical Data
Download Sieve Magnet Datasheet
