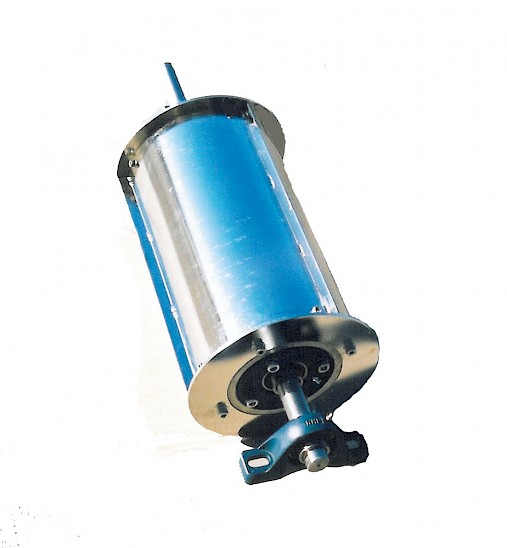

Magnetic Drum Metal Separator

Ideal for removing tramp ferrous material from dry bulk materials

High-performance primary magnetic separator
Suitable for use with dry powders, granulates or sand
For use at end of conveyors or vibratory feeders
Multiple sizes available

Download datasheet

Get a quote

Overview - Magnetic Drum Metal Separator

Process protection against ferrous contamination

The high-intensity drum magnetic separator is ideal for the continuous removal of tramp ferrous contamination from any dry bulk material and is regularly installed in the most arduous of environments.

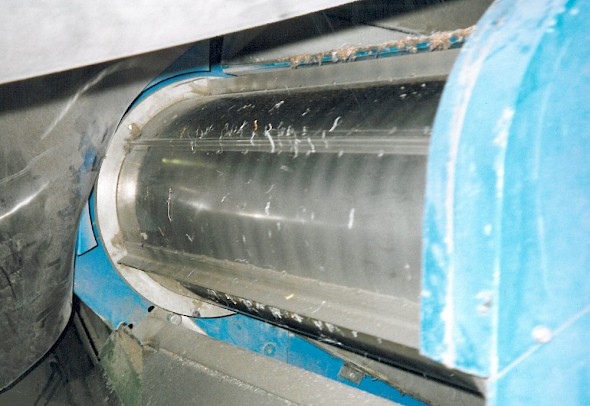

Magnetic drums should be fitted at the discharge end of conveyors or vibratory feeders. High-performance Rare Earth magnets are incorporated within a stainless steel wear resistant drum shell. Cleaning is continuous; the drum rotates taking contamination away from the static magnets.

Applications
Suitable for dry and semi dry, powders, granulates and sand etc
Can be installed at the end of conveyor belt, vibratory feeder or in-line chute sections

Benefits
Reduces spark risk
Continuous self-cleaning
Removes large to medium sized contamination
Allows difficult products to be screened
High volume capacity

Performance
Magnetic Performance: 3,500 Gauss
Performance Reading: 215mm Dia. = 85mm, 315mm Dia. = 100mm 400mm Dia. = 150mm*
Temperature: -5°C / +40°C
Construction
Magnetic Material: Rare Earth Neodymium Iron Boron - (NdFeB)
Drum Shell: 304 grade stainless steel
