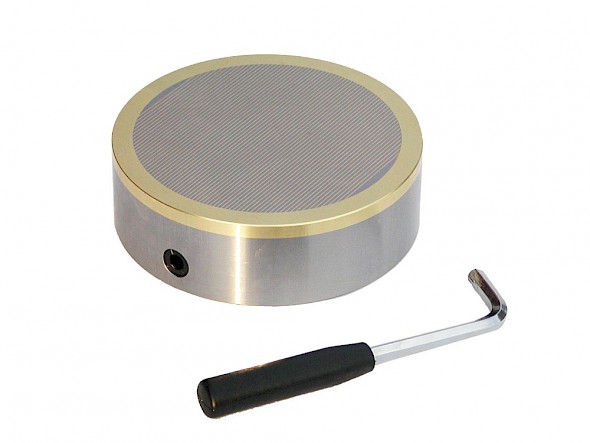

Circular Standard Chuck

Fast, accurate clamping for grinding and machining components

All metal top plate - high accuracy and long lifespan
High corrosion resistance - resists damage from coolants
Chrome-plated side and end stops - accurate location
Base plate - for fixing to a machine bed (clamps supplied)
Simple on-off switching - removable operating handle
Fail-safe permanent magnetic technology

Download Magnetic Workholding Catalogue

Get a quote

Overview - Circular Standard Chuck

Cost-effective permanent magnetic chucks for grinding and turning applications.

Our Standard range chucks provide high performance at an extremely competitive price. Available in a choice of 2 pole formats, the standard chucks are manufactured from steel and brass with Neodymium magnets located in the top plate to enhance performance.

Pole spacing options

Fine pole - ideal for thin and small workpieces from 0.118" to 0.028" (mm to 0.7mm) thick

Standard pole - ideal for clamping thicker workpieces > 0.118" (3mm)

Want to discuss this in more detail? Get in touch

Technical Data

Download Magnetic Workholding Catalogue

Model Variations

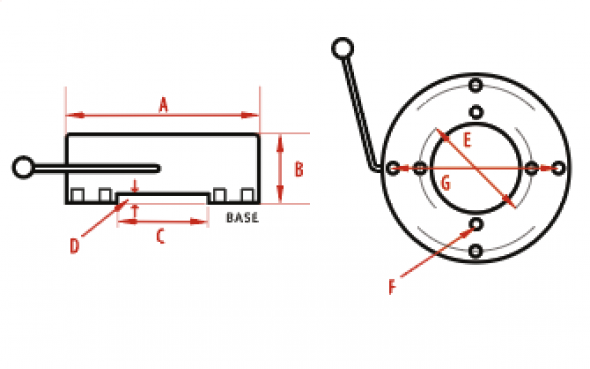

Product Number	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	Weight (kg)
Standard
ECSP100	100	50	50.8	6.35	76.2	M6	N/A	6
ECSP125	125	50	50.8	6.35	76.2	M6	101.6	9.38
ECSP160	160	50	76.2	6.35	101.6	M10	139.7	13.5
ECSP195	195	50	76.2	6.35	101.6	M10	139.7	18
ECSP255	255	50	85.7	6.35	114.3	M10	190.5	22.50
ECSP310	310	50	152.4	6.35	184.1	M12	254	32
ECSP350	350	50	196.85	6.35	196.85	M12	N/A	40
Fine
ECFP100	100	50	50.8	6.35	76.2	M6	N/A	6
ECFP125	125	50	50.8	6.35	76.2	M6	101.6	9.38
ECFP160	160	50	76.2	6.35	101.6	M10	139.7	13.5
ECFP195	195	50	76.2	6.35	101.6	M10	139.7	18
ECFP255	255	50	85.73	6.35	114.3	M10	190.5	22.5
ECFP310	310	50	152.4	6.35	184.15	M12	254	32
ECFP350	350	50	196.8	6.35	234.9	M12	N/A	40
