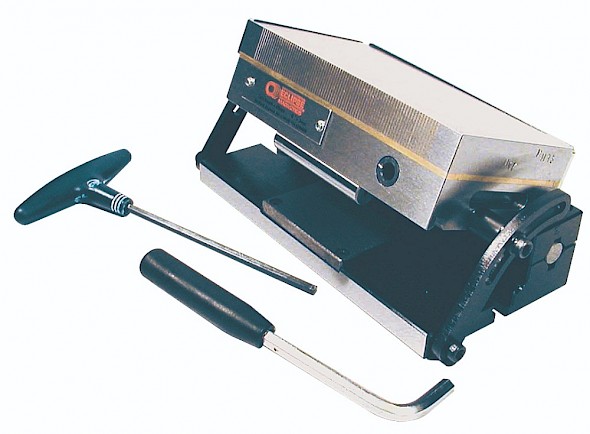

Simple Magnetic Sine Tables Short Lift

Highest quality sine tables for precision grinding and spark erosion

Pole pitch 0.02" (0.5mm) brass / 0.06" (1.5mm) steel
Neodymium (Rare Earth) magnet system provides strong clamping force.
Clamping force 80N/CM²
Tilts on longitudinal axis
Maximum precision
Very low height
Tilt range 0-45 degrees
Angular accuracy: plus / minus 5 sec
Baseplate thickness at 0 degrees = 0.12" (3mm)
Plane parallelism plus / minus 0.0002 / 3.9" (0.005 / 100mm)

See our range of Magnetic Chucks

Get a quote

Model Variations

Model Variations

Product Number	Chuck	Top Plate Length (inches)	Top Plate Length (mm)	Top Plate Width (inches)	Top Plate Width (mm)	Base Length (inches)	Base Length (mm)	Base Width (inches)	Base Width (mm)	Height at Zero (inches)	Height at Zero (mm)
SSTFP1018	ERFP1018	7.1	180	3.9	100	8.5	215	4.5	115	2.9	73
SSTFP1325	ERFP1325	10.0	255	5.1	130	11.6	295	7.7	195	3.1	78
SSTFP1535	ERFP1535	13.8	350	5.9	150	15.4	390	6.5	165	3.5	89
