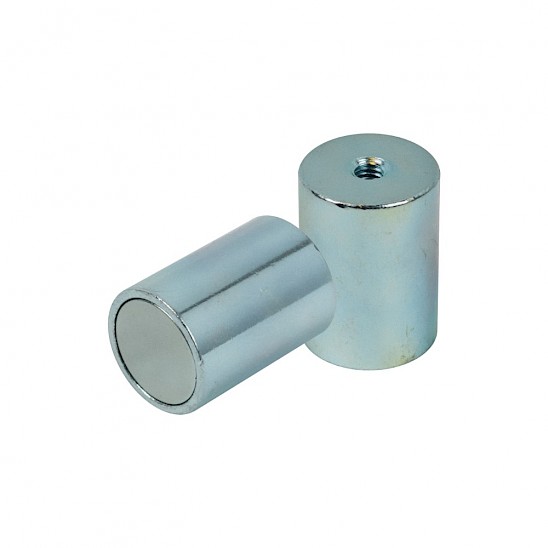

Samarium Cobalt Deep Pot Magnet
Ideal for higher temperature holding and clamping applications
Ideal for mounting components with a screw or bolt
Product Number | Diameter (inches) | Diameter (mm) | Height (inches) | Height (mm) | Thread size | Pull force (lbs) | Pull force (kg) | Units per pack |
---|---|---|---|---|---|---|---|---|
E740NEO | 0.24 | 6 | 0.79 | 20 | M3 | 1.3 | 0.6 | 20 |
E741NEO | 0.31 | 8 | 0.79 | 20 | M3 | 2.6 | 1.2 | 20 |
E742NEO | 0.39 | 10 | 0.79 | 20 | M4 | 5.3 | 2.4 | 20 |
E743NEO | 0.51 | 13 | 0.79 | 20 | M4 | 13.2 | 6.0 | 20 |
E744NEO | 0.63 | 16 | 0.79 | 20 | M4 | 19.8 | 9.0 | 10 |
E745NEO | 0.79 | 20 | 0.98 | 25 | M6 | 29.8 | 13.5 | 5 |
E746NEO | 0.98 | 25 | 1.38 | 35 | M6 | 41.9 | 19.0 | 2 |
E747NEO | 1.26 | 32 | 1.57 | 40 | M8 | 75.0 | 34.0 | 2 |
