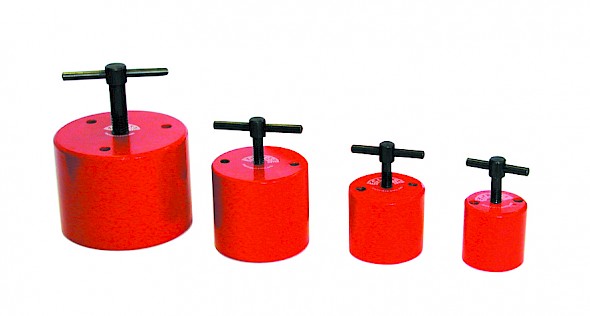

Magnetic Holdfasts

For workholding, welding , gripping and assembly

Can be built into workholding, handling and assembly fixture to provide a powerful grip
Supplied with screw release handle
Easy to engage and release, allows adjustment
4 sizes available up to 403.4lbs (183kg) holding power

Model Variations

Model Variations

Product Number	Diameter	Height	Fixing Holes PCD	Holes	Pull Force
E939	1.75" (44.5mm)	1.75" (44.5mm)	1.25" (31.75mm)	2 x M8	44lbs (20kg)
E940	2.13" (54mm)	1.94" (49.2mm)	1.50" (38.1mm)	2 x M8	88lbs (40kg)
E941	2.76" (70mm)	2.54" (64.5mm)	2.00" (50.8mm)	2 x M8	194lbs (88kg)
E942	4.00" (101.6mm)	2.94" (74.6mm)	2.72" (69.0mm)	3 N/A	403lbs (183kg)
