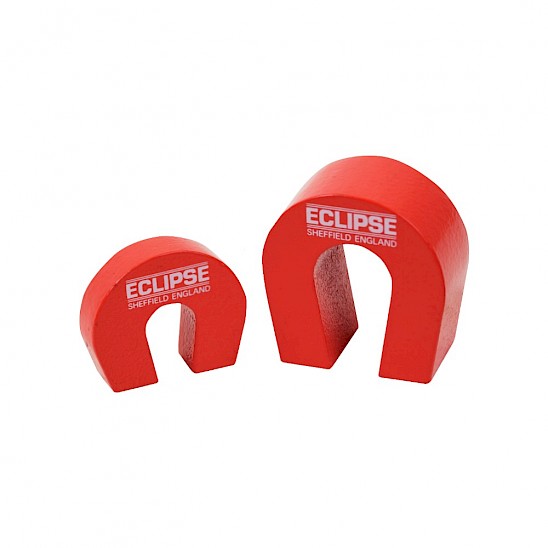

Alnico Power Magnets
For Holding & Clamping Applications
For attracting, holding, clamping steel parts
Product Number | Height | Length | Pull Force | Units Per Pack | Weight Per Pair | Width | Width of Gap |
---|---|---|---|---|---|---|---|
E802 | 1.000inches (25.4mm) | 1.122inches (28.5mm) | 5.3lbs (2.4kg) | 10 | 0.066lbs (0.03kg) | 0.299inches (7.6mm) | 0.248inches (6.3mm) |
E803 | 1.378inches (35mm) | 1.311inches (33.3mm) | 8.8lbs (4kg) | 5 | 0.198lbs (0.09kg) | 0.625inches (15.9mm) | 0.311inches (7.9mm) |
