Alnico Minor Magnets

Ideal for attracting, holding and clamping steel parts

1022°F (550°C) maximum operating temperature
Alnico 5 magnet material
Good corrosion resistance
Part number E801

Overview - Alnico Minor Magnets

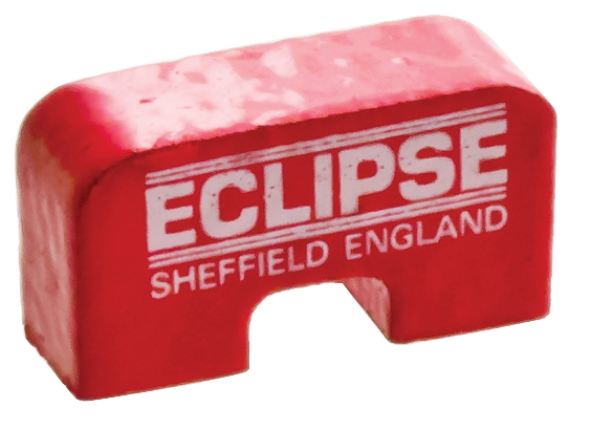

The Alnico horseshoe magnet is a classic Alnico magnet shape. Sometimes the Alnico horseshoe magnet is called a C-shape magnet and is also known as a pocket Alnico horseshoe magnet, a minor Alnico horseshoe magnet, and a power Alnico horseshoe magnet - they are all Alnico horseshoe magnets but have different sizes and performances.

The Alnico horseshoe magnets are capable of operating at temperatures of up to a maximum of +1022°F (550°C). They are supplied in natural (uncoated / unpainted) and red paint finishes and can be offered in a range of dimensions and grades.

Want to discuss this in more detail? Get in touch

Technical Data

Download Heritage Range Brochure

Model Variations

Product Number	Height	Length	Pole Gap	Pull Force	Units Per Pack	Weight	Width
E801	0.437inches (11.1mm)	0.874inches (22.2mm)	0.252inches (6.3mm)	2.0lbs (0.9kg)	10	0.022lbs (0.01kg)	0.311inches (7.9mm)
