Alnico Button Magnets
Ideal for clamping, holding and switching applications
- 1022°F (550°C) maximum operating temperature
- Alnico 5 magnet material
- Good corrosion resistance
Overview - Alnico Button Magnets
Ideal for holding, fixing and clamping applications

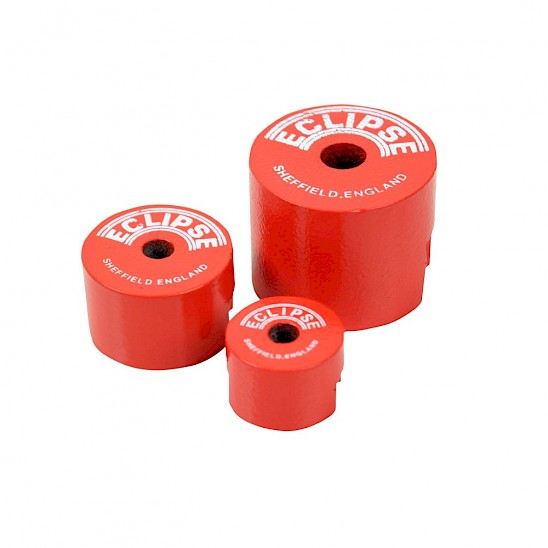

The Alnico button magnet is a two pole rounded magnet usually with a hole in the centre and a slot separating the two poles. They are generally small in size.
For larger units with greater holding force, the Alnico horseshoe may be a better choice (or a pot magnet). The Alnico button magnets are supplied in natural (uncoated / unpainted) and red paint finishes and are capable of operating at temperatures of up to a maximum of +1022°F (550°C). Other colour options are available as part of our custom made Alnico magnet service - subject to quantities.
Technical Data
Model Variations
| Product Number | Diameter | Hole Size | Height | Pull Force | Slot Size (Min-Max) | Units Per Pack | Weight (kg) |
|---|---|---|---|---|---|---|---|
| E821 | 0.500inches (12.7mm) | 0.177inches (4.4mm) | 0.375 (9.5mm) | 1.5lbs (0.7kg) | 0.16-0.28inches (4.0-7.2mm) | 10 | 0.013lbs (0.006kg) |
| E822 | 0.750inches (19.1mm) | 0.188inches (4.8mm) | 0.500inches (12.7mm) | 4.2lbs (1.9kg) | 0.22-0.34inches (5.6-8.7mm) | 10 | 0.044lbs (0.02kg) |
| E823 | 1.000inches (25.4mm) | 0.188inches (4.8mm) | 0.625inches (15.9mm) | 7.5lbs (3.4kg) | 0.22-0.34inches (5.6-8.7mm) | 10 | 0.110lbs (0.05kg) |
| E824 | 1.250inches (31.8mm) | 0.279inches (7.1mm) | 1.000inches (25.4mm) | 10.6lbs (4.8kg) | 0.31-0.50inches (8.0-12.7mm) | 2 | 0.249lbs (0.113kg) |
| E825 | 0.874inches (22.2mm) | 0.188inches (4.8mm) | 0.750inches (19.1mm) | 6.6lbs (3kg) | 0.25-0.25inches (6.3-6.3mm) | 10 | 0.110lbs (0.05kg) |
