Ultralift TP Magnetic Lifter
Designed for safe and efficient thin plate lifting
Ultralift Plus
A safer way to lift ferrous loads
- Lifting eye sensor - when under tension with the load, a mechanism locks the handle ensuring that the load cannot be released
- Safety shim - the safety shim allows pre-testing of the load, guaranteeing a 3:1 safety factor
- Safety button - locks the handle in the "ON" position to prevent accidental release of the load

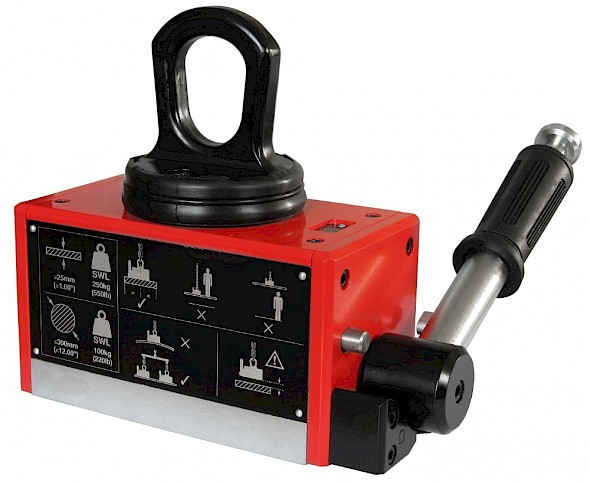

Overview - Ultralift Plus
A safer way to lift ferrous loads
The premier Ultralift Plus lifting magnet provides fast and efficient lifting for a wide range of loads and is capable of lifting both round and flat section loads.
Ultralift Plus uses high-intensity neodymium 'rare earth' magnet material for the highest power to weight ratio. The material is permanently magnetic, and switching the Ultralift Plus on and off is manual, so no power is required theno operating costs. You can use it almost anywhere - just hook it to your hoist or crane. Ultralift Plus is backed by a 3-year warranty.
Ultralift Plus has a range of built-in safety mechanisms:
• Lifting eye sensor - when under tension the lifting eye automatically locks the handle ensuring that the load cannot be released
• Safety shim - the safety shim enables pre-testing of the load thereby ensuring a 3:1 guaranteed safety factor
• Safety button - locks the handle in place preventing the accidental release of the load
For lifting thin plate see Ultralift TP.

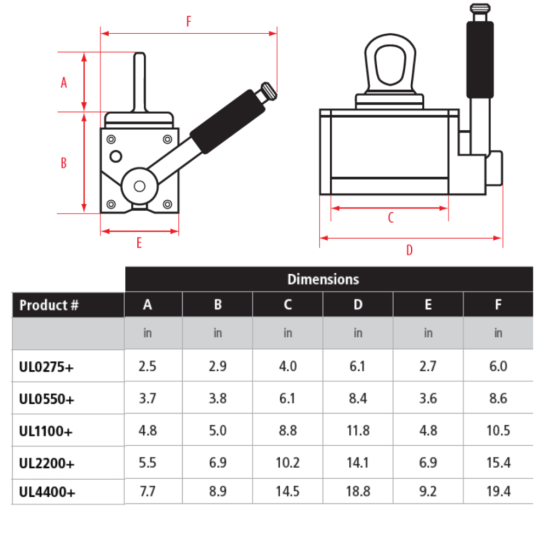

Technical Data
Model Variations
| Product Number | Self Weight (lbs) | Material Length Max. (inches) | Flat Section SWL (lbs) | Flat Section Thickness Min (inches) | Round Section SWL (lbs) | Round Section Dia. Max (inches) |
|---|---|---|---|---|---|---|
| UL0275+ | 8.8 | 60 | 275 | 0.8 | 110 | 8 |
| UL0550+ | 24.2 | 60 | 550 | 1.0 | 220 | 12 |
| UL1100+ | 59.4 | 80 | 1100 | 1.2 | 440 | 16 |
| UL2200+ | 138.6 | 120 | 2200 | 1.8 | 880 | 18 |
| UL4400+ | 345.4 | 120 | 4400 | 2.2 | 1760 | 24 |
