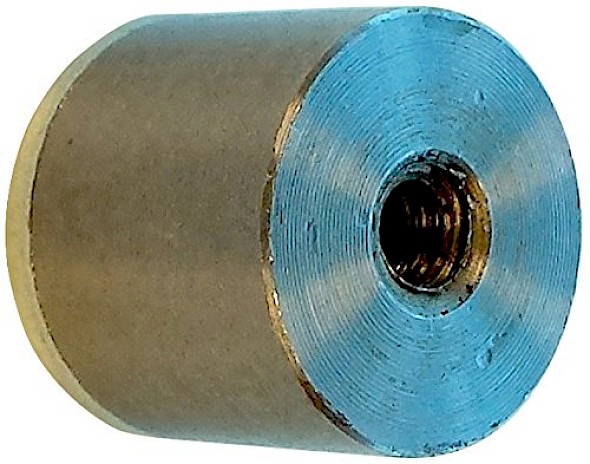

Neodymium Deep Pot Magnet
Ideal for mounting components with a screw or bolt
Alnico Pot Magnets
For gripping, lifting, and general securing applications
- For a wide range of applications
- Gripping, lifting, positioning jigs, soldering, general securing and fixing
- Suitable for temperatures up to 220°C (425°F)
- Wide range of size options available
Model Variations
| Product Number | Diameter | Length | Thread Size | Pull Force |
|---|---|---|---|---|
| M19169NK | 0.250" (6.35mm) | 0.500" (12.70mm) | No. 6 UNC | 0.2lbs (0.09kg) |
| M19170NK | 0.250" (6.35mm) | 0.750" (19.05mm) | No. 6 UNC | 0.3lbs (0.14kg) |
| M19171NK | 0.250" (6.35mm) | 1.000" (25.40mm) | No. 6 UNC | 0.4lbs (0.18kg) |
| M19172NK | 0.375" (9.53mm) | 0.500" (12.70mm) | No. 6 UNC | 1.4lbs (0.64kg) |
| M19173NK | 0.375" (9.53mm) | 0.750" (19.05mm) | No. 6 UNC | 1.5lbs (0.68kg) |
